White Sturdy Tempered Glass Shelves For Refrigerators Design
Customized

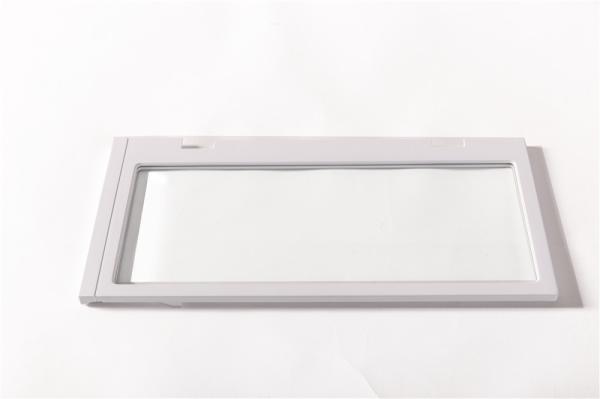

Description of Tempered Glass Shelves For Refrigerators:
These glass shelves for refrigerators are made of tempered glass
and the trim pieces around the shelves allow them to retain up to
12 ounces of spilled liquid. This allows the spill to be easily and
quickly cleaned without making a mess of other food items. Size
could be made as your design. To ensure proper fit before ordering, please measure the area in
which the glass fits before ordering to ensure a proper fit.
Logo or mark could be on the plastic profile, only if it's required
when making the mould.
Function:
| Decoration | Dimensioin | As clients' drawing |
| Certificate: | CCC | Other Name: | Fridge Glass Tray |
| Thickness: | 3.2mm, 4mm, 5mm | Shape | Flat |
| Condition | New | Glass Type: | Float Glass |
Features of tempered glass shelves for refrigerators:
1. Tempered glass is a kind of safe glass and the fragment of which
does no harm to people.
2. it's 4-5 times safer and harder than ordinary annealed glass.
3. Special logo and pattern can be printed on tempered glass.
4. Outstanding performance in resisting thermal stress.
5. Bear sudden temperature change of 220 centigrade degree
Supply ability of tempered glass shelves for refrigerators:
Supply Ability: 1,250,000 Square Meters per Month
| Quantity(Square Meters) | 1 - 100 | 101 - 1000 | 1001 - 10000 | >10000 |
| Est. Time(days) | 7 | 15 | 20 | Negotiable |
Quality Inspection Item of tempered glass shelves for refrigerators
1, Appearance, In the daytime (or in the case of similar
brightness), observe the tempered glass shelves for refrigerators
vertically for 5 seconds with naked eyes or with the aid of glasses
from a distance of 50cm or a distance of one arm length. No dirt or
scratch, edge and corner, printing effect.
2, Printing appearance: the glass printing area (ink covered area)
of the control panel is judged under the condition that the back
has opaque cover (black background), and under the black
background, it is acceptable that the front is invisible.
3, Evenness: bow shape ≤ 0.5%; there is one place (one peak and one
trough) allowed for every 610mm of waveform;
4, Granularity test: two pieces of tempered glass are selected for
each batch of glass to be tested, and the place where the center of
the long side of the glass plate is 13mm higher than the bottom
edge is taken as the breaking point (see figure). After the glass
is broken, the two areas with the largest granularity are selected
in a 50mm*50mm box for counting. The number of crack-free particles
completely contained in the 50mm*50mm box must be ≥50, and the
largest particle size must be ≤ 15 mm * 8 mm.
5, Impact test: drop a steel ball with a diameter of 51mm and a
weight of 535g from the glass surface 648mm, and impact the center
of the glass plate once to ensure that the glass does not break.
Features of tempered glass shelves for refrigerators
Has the unique gloss appearance, good light transmission
Corrosion resistance , easy clean, various colors.
Different patterns can be made. Its flower pattern or metallic
effect is clearly visible and beautiful
Tempered glass can be custom-made.
Safe packing to keep safe of tempered glass shelves for
refrigerators:
1. Interlay paper between two sheets.
2. Seaworthy wooden crates.
3. Iron/Plastic belt for consolidation
OEM Service :
OEM glass is avaliable here, just tell us the details of the
specification and other special manufacturing technique for the
toughened glass shelves in refrigerator, and you can get the most
satisfied tempered glass shelves for refrigerators from us.
