3mm 4mm Scratch Proof Oven Tempered Glass With Dot Printed Window
Oven tempered glass description:
Tempered glass is the perfect glass to use in oven doors thanks to
its low conduction and high durability. Tempered glass also
represents a safer option for ovens than regular glass thanks to
its ability to shatter into pebble-sized pieces, reducing the risk
of serious injury in an emergency.
Parameters of oven tempered glass:
Technique: Clear glass, printed glass
Type: Float Glass, Low-e glass
Thickness: 3mm,4mm,5mm,6mm, etc
Glass color: Ultra Clear,clear,grey.black,bronze,blue
Size: Customer Demand
Usage: Indicator screen and oven door
Edge: Flat edge, round edge, bevel edge
Corner: Safety corner and R corner
Border color: Black,red,white etc.
| Thickness and size | |
| Thickness(mm) | Max Size(mm) |
| 3.0 | 1000*1600 |
| 4.0 | 1000*1600 |
| 5.0 | 1000*1600 |
| Physical properties: | |
| Density ρ | approx. 2.6 g / cm3 |
| Modulus of elasticity E | approx. 93 x 103 MPa |
| Bending strength σbB | approx. 35 MPa |
Lead time for Oven tempered glass
| Order QTY | sample | 500 | 2000 | 5000 | 10000 |
| Lead time | 5 days | 10 days | 15 days | 20 days | 25 days |
Oven tempered glass producing:
Glass is first prepared for tempering. It is cut into desired size
and sandpaper is used to remove sharp edges off the glass. The
glass is then washed and sent into a tempering oven, which heats
the glass to 620 degree Celsius. Then the glass goes through
quenching, a high-pressure cooling procedure. High-pressure air is
blasted on the glass, which makes the surfaces cooler than the
inside. As a result of this, the outer surfaces go into compression
and the inner part remains in tension.
Description of screen printing on oven tempered glass:
Printing color for oven tempered glass is inorganic glaze (also
known as ink), printing to the glass surface, and then by drying,
tempered or hot processing, the glaze permanent dry or sintering in
the glass surface and get a kind of wear-resisting, resistance to
acid and alkali of decorative glass products. This product has a
high functional and decorative. It has many different colors and
patterns, such as strip, mesh and the electric design and so on.
Also can according to customers' different needs further design
pattern.
Please Note:
The specification should be confirmed before put the sheet glass
into the toughening furnace, the tempered glass can't be cut
anymore after out of the toughening furnace, otherwise it will be
broken.
Oven tempered glass edges
We create oven tempered glass at whatever length, depth, and
thickness you need. Most of the times these oven tempered glass
have exposed edges, giving you the option of adding another level
of detail to better reflect your personal style. Our seamed edge
comes standard with your order. If the edge is going to show,
consider a rounded (pencil) or flat edge, as preferred by many as
it gives a more finished look when edges are visible.
After choosing whether or not you want a rounded or flat edge, you
get to choose between a polish or grind. A polish gives a shiny and
glossy finish, while a grind provides a frosted matte finish. This
small detail can impact the overall effect you want to create in
your space.
OEM Service:
OEM glass is available here, just tell us the details of the
specification and other special manufacturing technique and you can
get the most satisfied product from us.
Equipment for oven tempered glass:

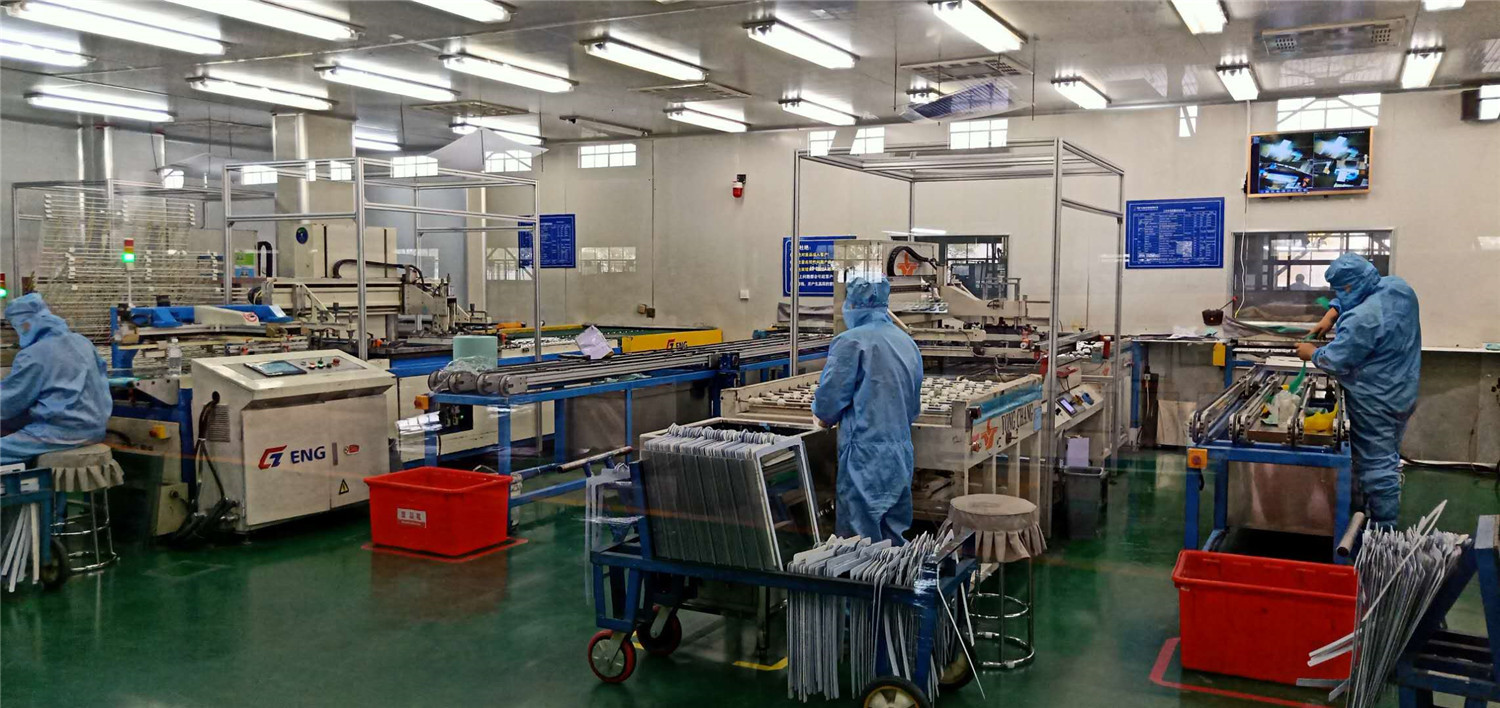

10,000 square meters dust free printing workshop.
Silk Screen Printing Machine: 25 lines
Automatic Tempering Furnaces:3 lines
Co-injection machine: 16 lines
Hot stamping machine for decorative glass: 5 lines
CNC Processing Centers (cutting , notching , drilling , processing
for shaped glass , etc.) 4 lines
